John   Conway's   game   of   life
Grid Size:
Show number of neighbors: Show Infected areas:
Delay: 2 sec 1 sec 0.7 sec 0.5 sec 0.2 sec
Still Lifes
Grid Size:
Active Cells:
The Game of Life was invented by the British mathematician John Horton Conway in 1970. The game has an unlimited number of initial patterns of squares and they evolves by strict rules into surprising shapes, each generation is a function of the previous generation. The rules are applied every generation on each cell. The game was investigated by many scholars as a simulation tool.
A random start pattern usually will stabilize. Conway offered a prize for any example of pattern that grows forever. Such a pattern was found shortly after.
The rules of the game
1 Any cell can have from 0 up to 8 neighbors maximum.
2 Any live cell with fewer than two live neighbours dies, as if caused by under-population.
3 Any live cell with two or three live neighbours lives on to the next generation.
4 Any live cell with more than three live neighbours dies, as if by overcrowding.
5 Any dead cell with exactly three live neighbours becomes a live cell, as if by reproduction.

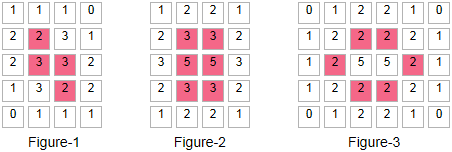

Example: The numbers inside the squares indicates number of neighbours.
The shape at figure-3 is a still one and is not changed by the generation change.
To demonstrate a real game the grid should be an infinite size. In order to simplify the code written we has limited the size of the grid boundary to 16 celles, this will highly reduce the boundary distortion. It is possible to choose a greater gride size to explore the behavior of various shapes.
